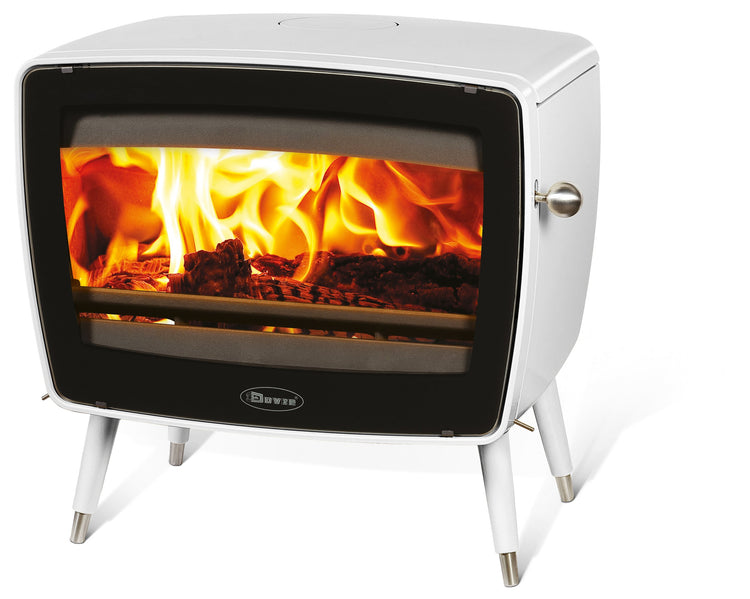

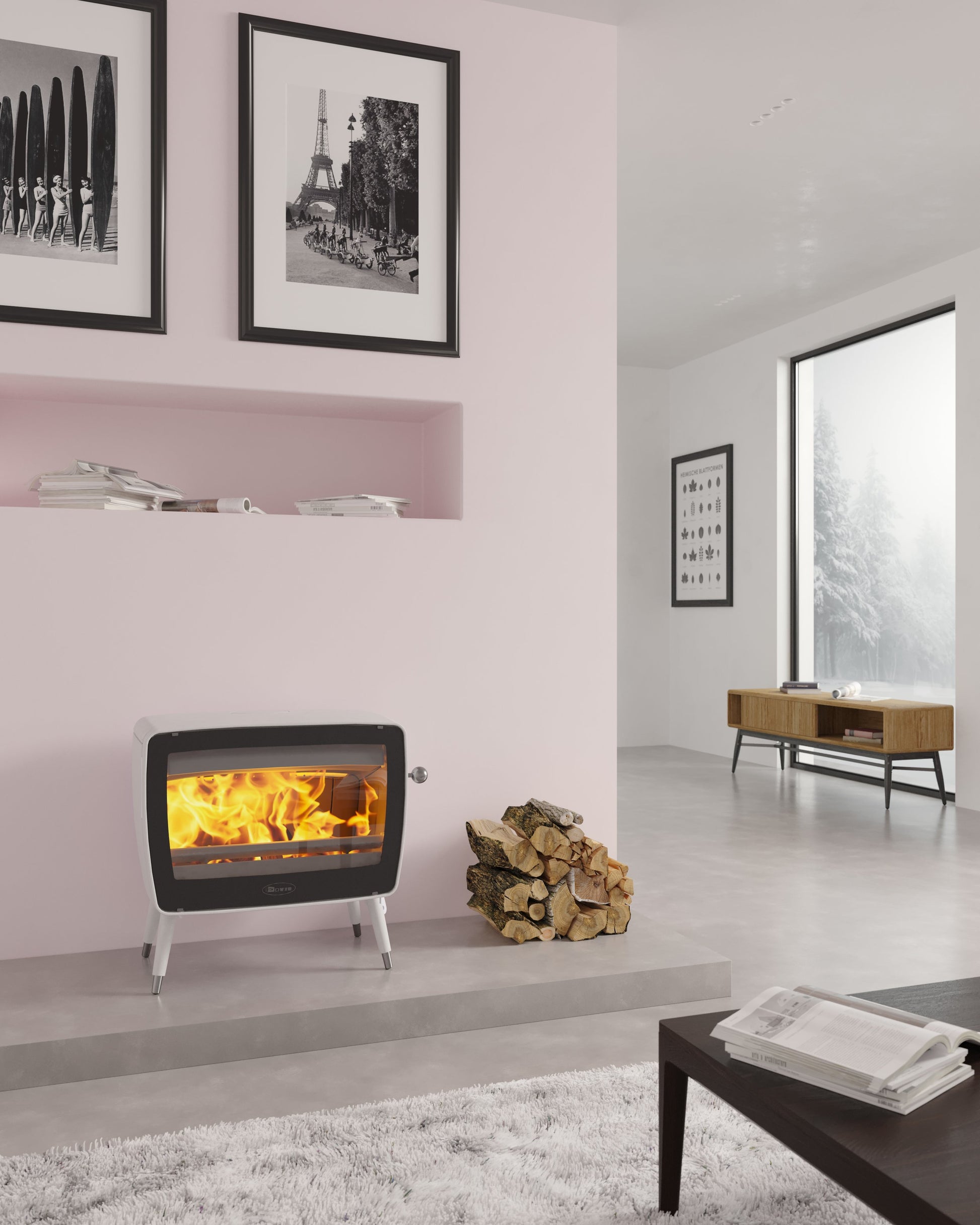

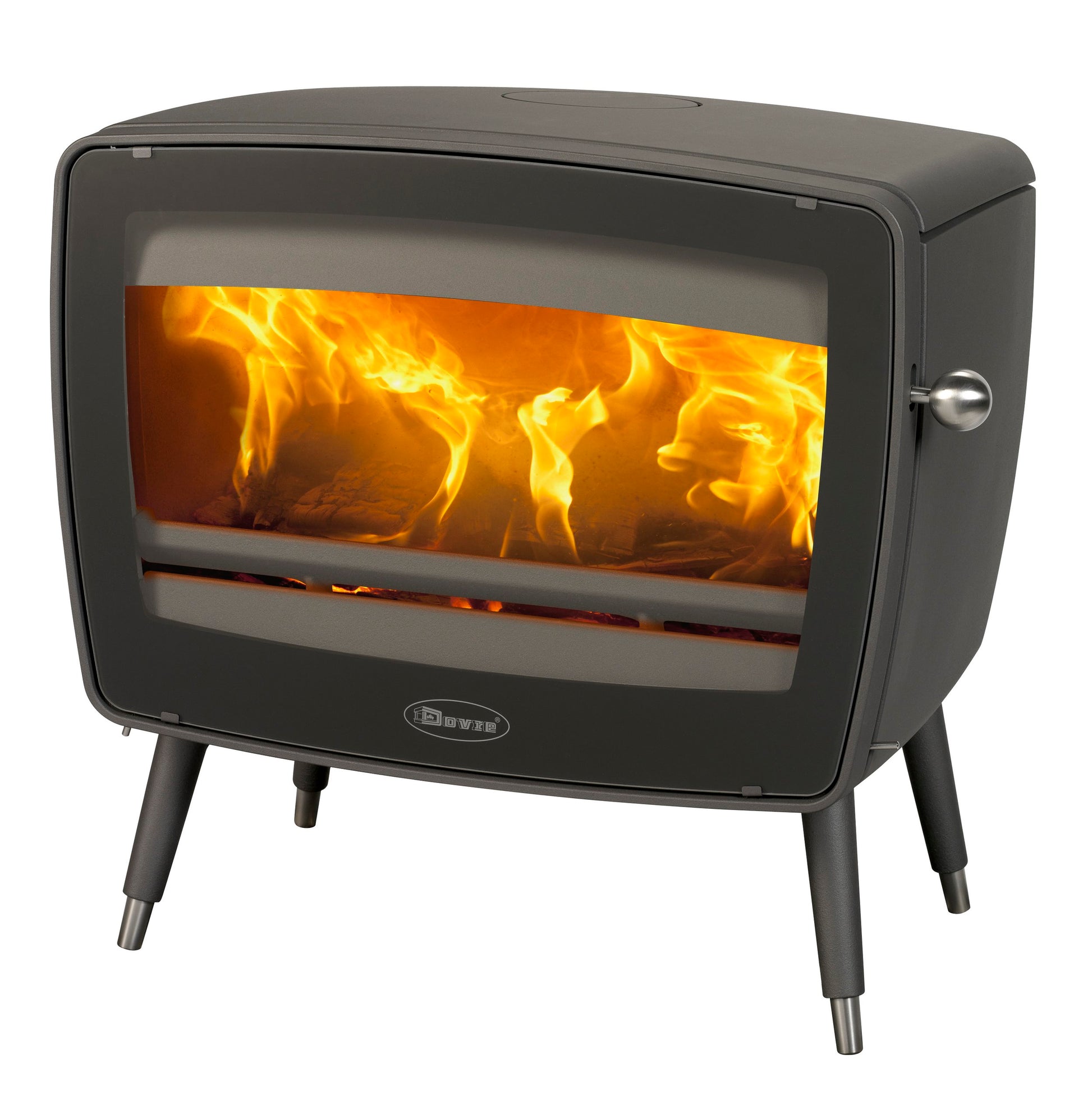

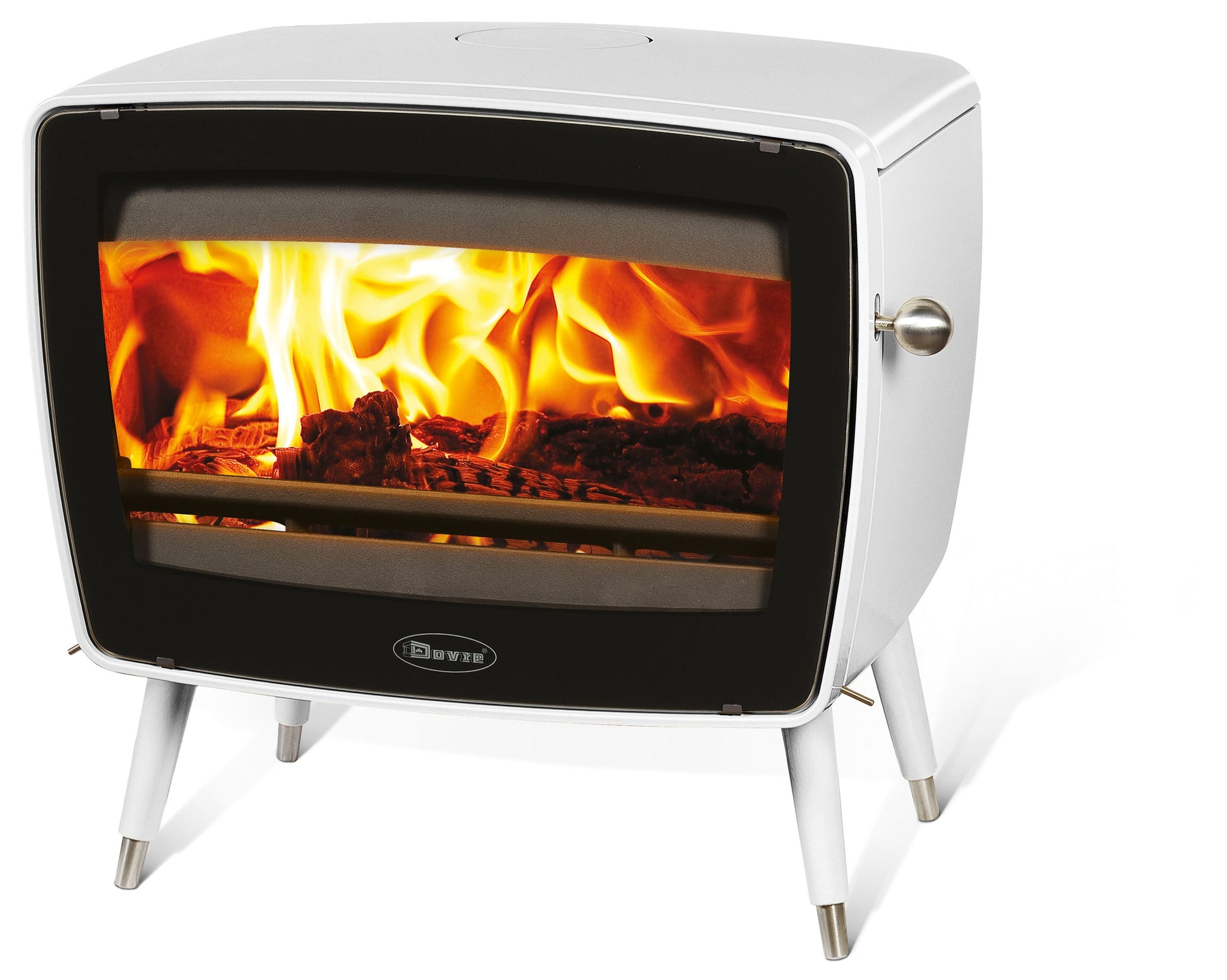

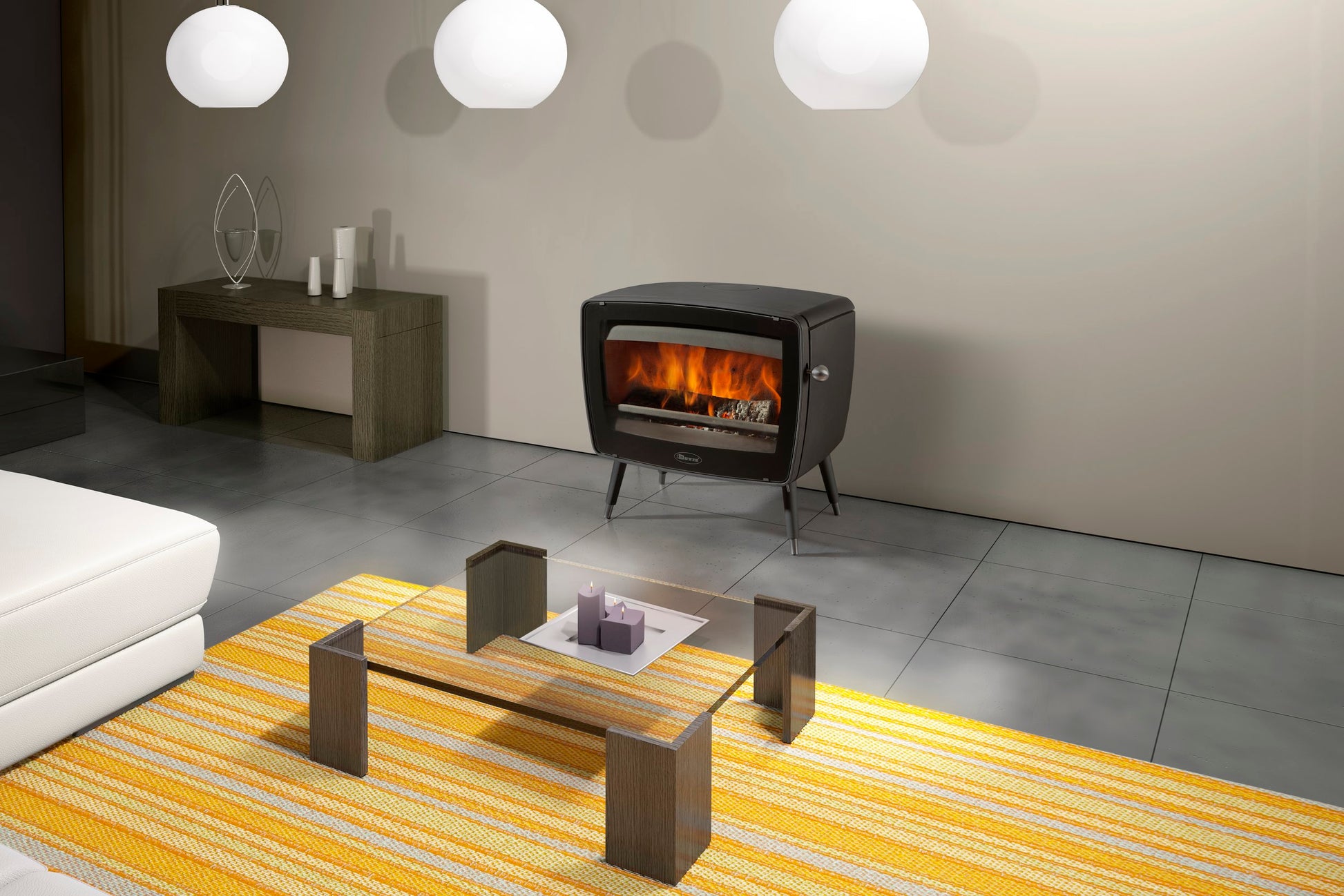

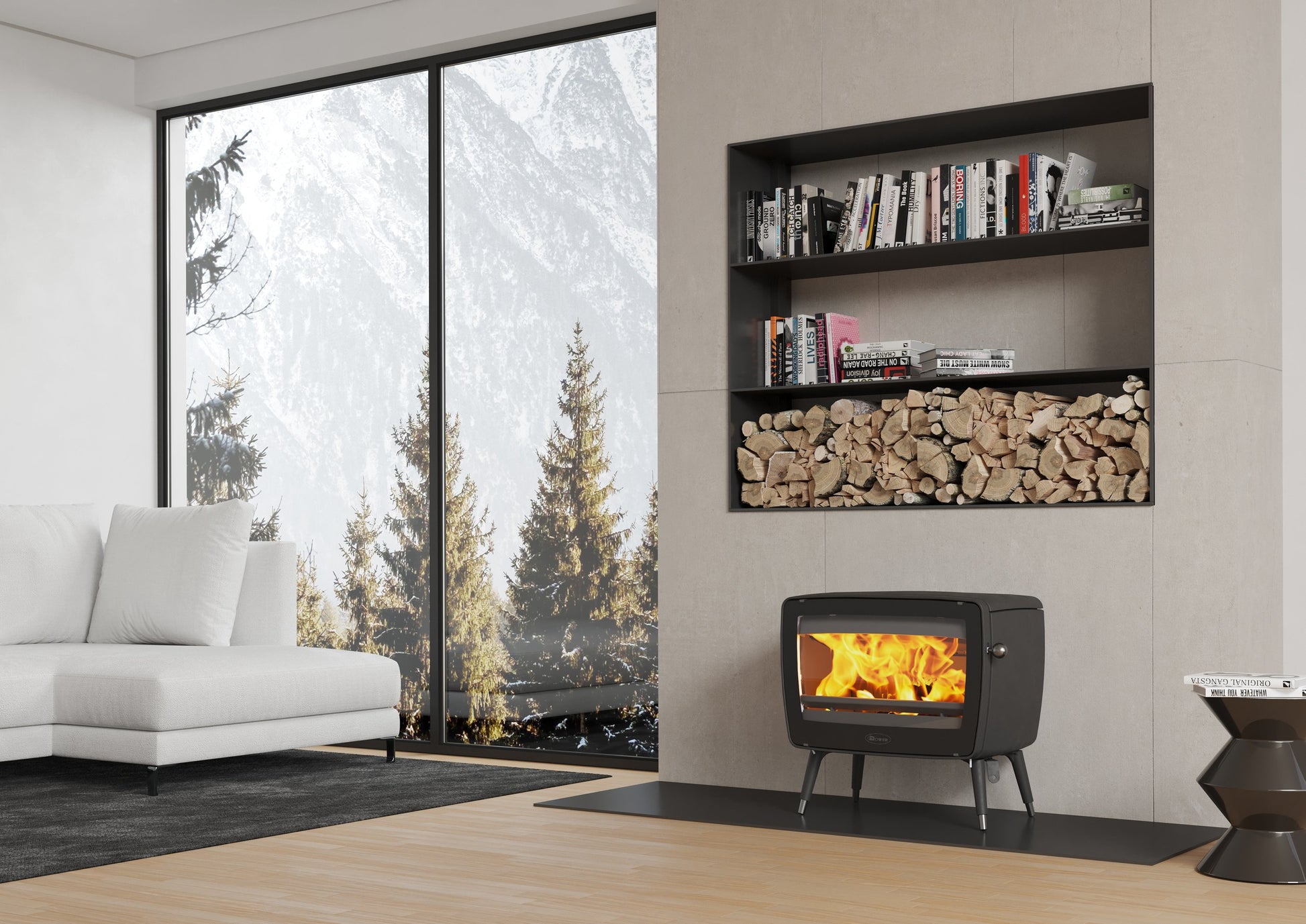

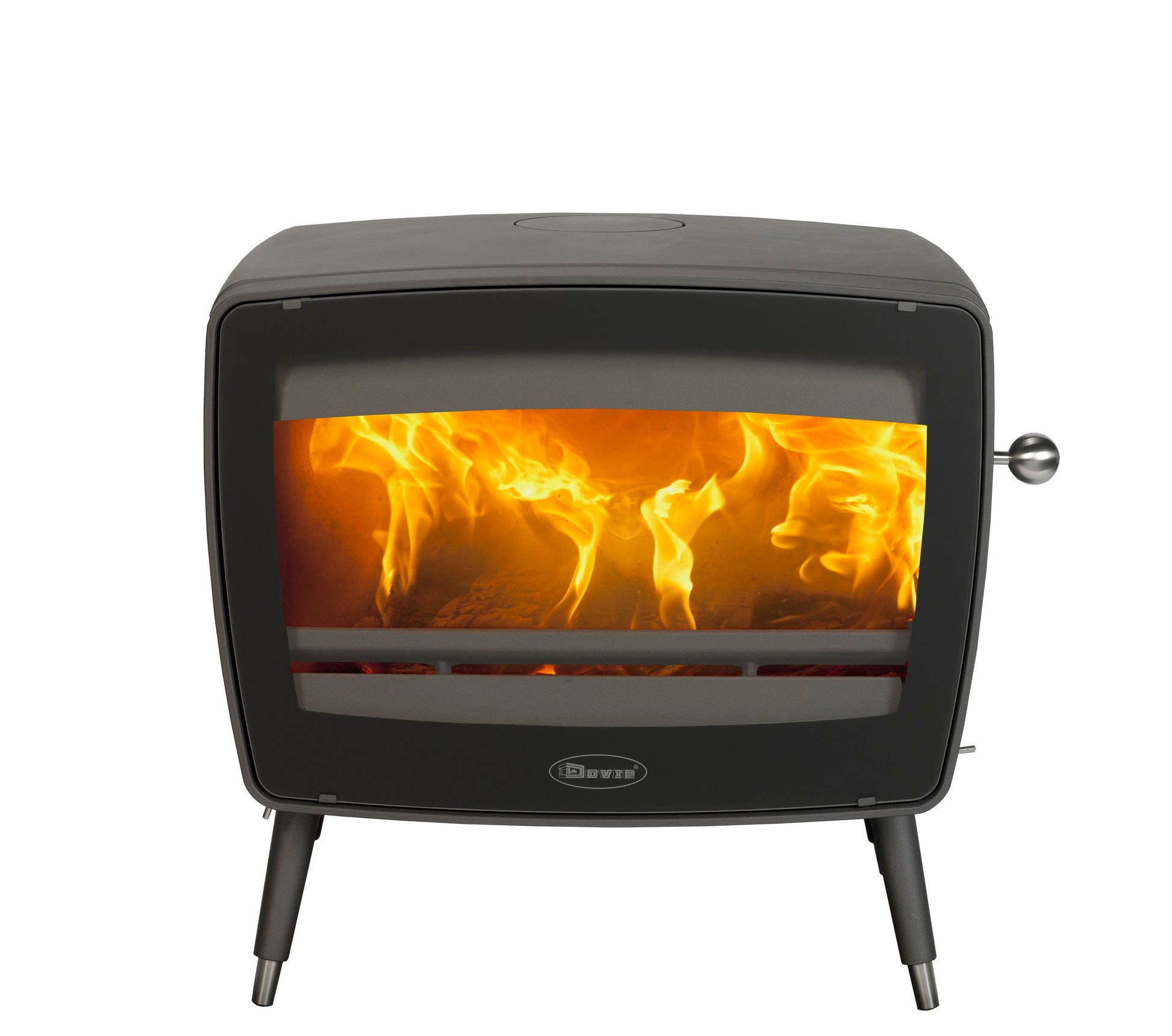

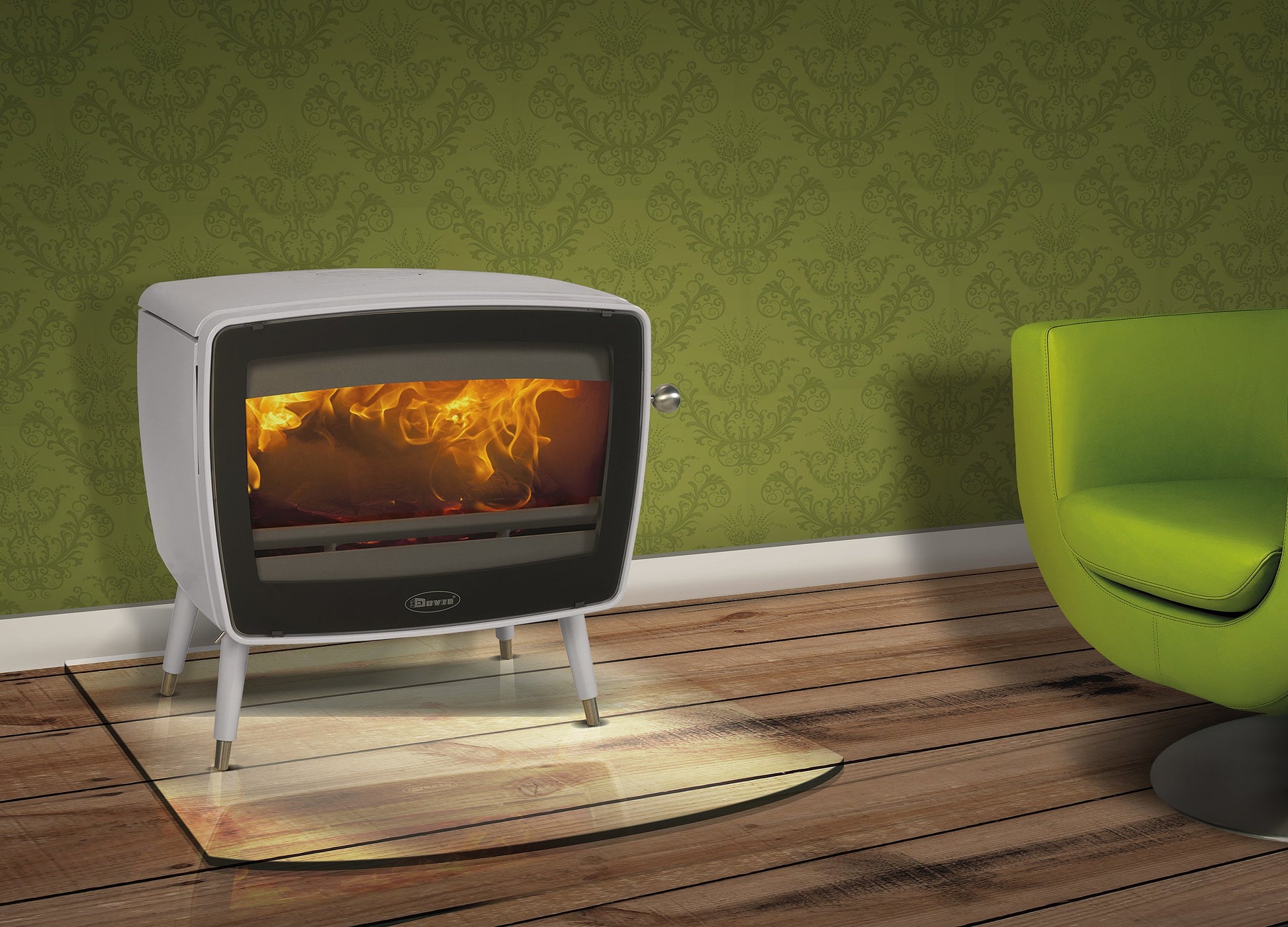

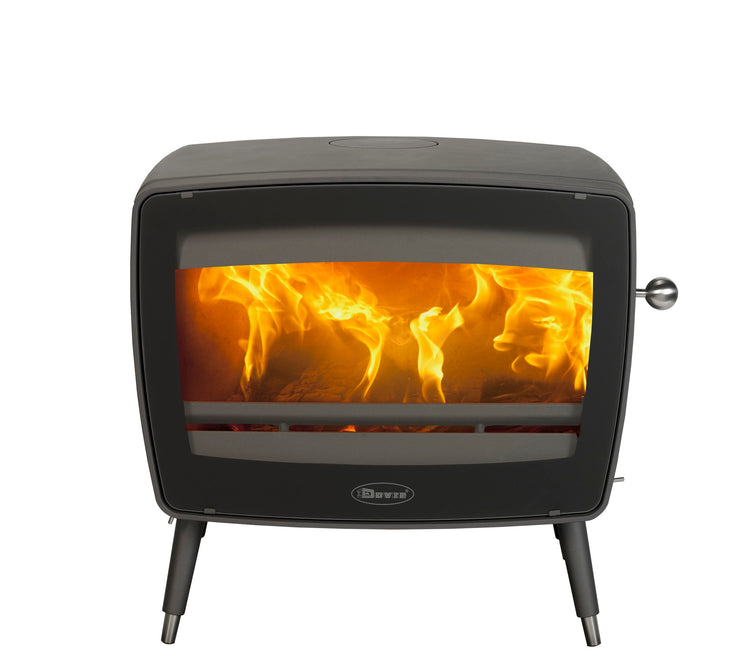

The Vintage series has a brilliant retro look, a television' shape, and soft, rounded edges.This wood stove has a removable handle and is directly connectable to outside air.
PRODUCT NAME: VINTAGE50
FAMILY: VINTAGE WOOD
COLOR: Black
TYPE: Stove
STYLE: Modern
DIMENSIONS WXHXD (MM): 690x690x445
WEIGHT (KG): 155
FUEL: Wood
CONNECTION DIAMETER (MM): 150
HEIGHT FLUE (MM): 545
CONNECTION PLACE: on top or rear
NOMINAL OUTPUT (KW): 9
MINIMAL OUTPUT (KW): 3
MAXIMUM PERFORMANCE (KW): kW11
CAPACITY (M³): 180
EFFICIENCY: 84,20%
CO EMISSIONS (13% O2): 0,1
DUST PARTICLES (MG/NM³): 27
COMBUSTION FLOOR: Refractory bottom with ash hatch
MINIMUM PRESSION: 12
FLUE GAS VOLUME (G/S): 6,4
LENGTH OF LOGS (CM): 50
SECOND COMBUSTION: Yes
ASH TRAY: Inclusive
HEAT SHIELD: Inclusive
OUTSIDE AIR: Inclusive
AVAILABLE IN COUNTRIES: Australia
TEMPERATURE INCREASE MEASURED IN THE MEASUREMENT SECTION (K): 207
NOX EMISSIONS (13%O2 AT NOMINAL HEAT OUTPUT - MG/NM³): 112
SEASONAL SPACE HEATING ENERGY EFFICIENCY (%): 74,2
DIRECT HEAT OUTPUT (KW): 9
INDIRECT HEAT OUTPUT (KW): 0
TYPE OF HEAT OUTPUT/ROOM TEMPERATURE CONTROL: single stage heat output, no room temperature control
Specifications
More
Less
Lead times, Assembly and Delivery
More
Less
Current lead times are approximately 4-6 weeks on custom concrete products. Professional Installation Across North East Victoria and Riverina - Contact Us for a Custom Quote! Shipping available Australia-wide, contact us for a custom quote!
